CEM 2120 TT5525

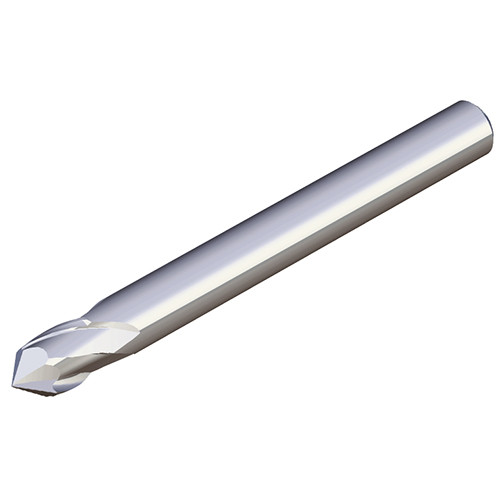

2 flute solid carbide end mills for 45° chamfering, countersinking & spot drilling
Price: Log in For Price

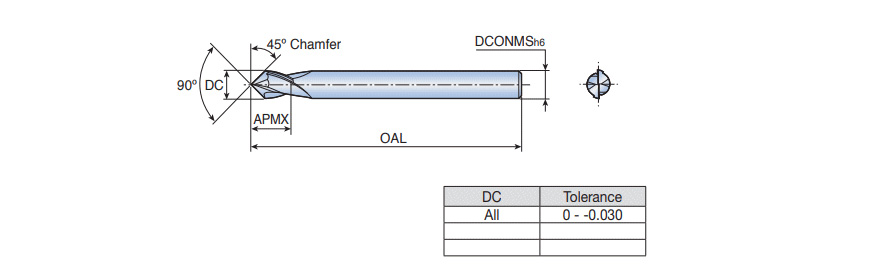

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Chamfer & Serration | Countersinking | Drill Mill | Solid Carbide End Mills | | Coating | AlTiCrN |
| Cutting Diameter (DC) | 12 mm | Grade | TT5525 |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 18 mm | Body Material | Carbide |
| Overall Length (OAL) | 110 mm | Unit | M |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
Product Features
| Family Description | 2 flute solid carbide end mills for 45° chamfering, countersinking & spot drilling | FamilyName | CEM 2 (Solid type) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.1655
Name
Chamfer Mills
FamilyName
CEM 2 (Solid type)
BrandName
Taegutec
