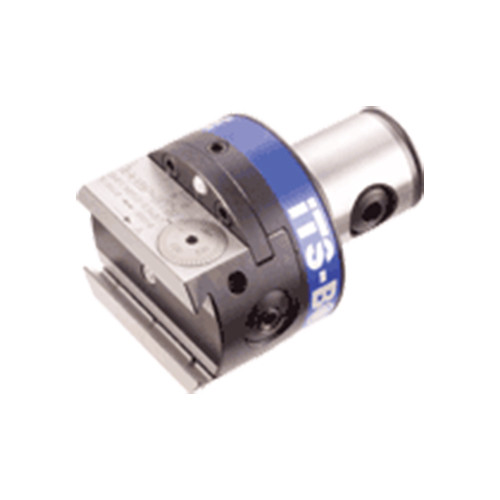

BHF MB63-63X87
Fine boring heads with the MB modular connection system and 2 µm direct diametric adjustment for a diameter range of 2.5 up to 500 mm.
Price: Log in For Price

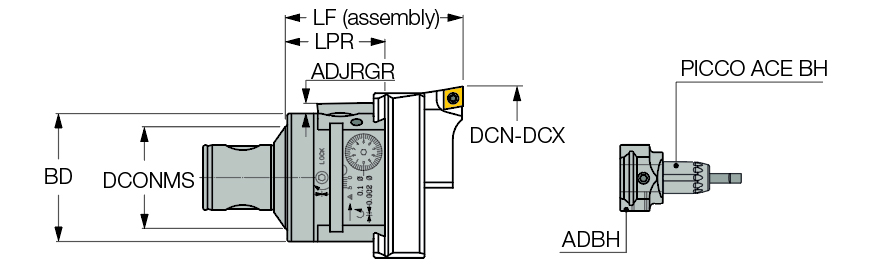

| Cutting Diameter Minimum (DCN) | 2.5 mm | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 125 mm | Rotational Speed Maximum (RPMX) | 6000 rpm |
| Functional Length (LF) | 49 mm | Body Material | Steel |
| Body Diameter (BD) | 63 mm | Unit | M |
| Connection Diameter Machine Side (DCONMS) | 63 mm |
Product Features
| Family Description | Fine boring heads with the MB modular connection system and 2 µm direct diametric adjustment for a diameter range of 2.5 up to 500 mm. | COO | Italy |
| Remarks | Click on individual item, then on More Info to see the boring options and the split view of its spare parts |
Shipping Info
Weight per item
1.5830
