| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | |
| Inscribed Circle Diameter (IC) | 6.35 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 11 mm | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 14 | Measurement Type | Metric |
| Corner Radius (RE) | 0.07 mm | Body Material | Carbide |
| Grade | IC250 | Thread Form Type (THFT) | NPT60 |
| Coating | TiCN+TiN | Unit | M |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.8 mm |
| Application | | Internal Thread Milling | Internal Threading lay down | |
Product Features

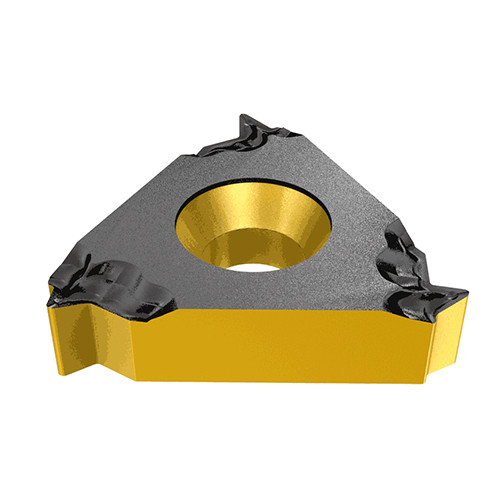

| Family Description | Internal NPT (National Pipe Threads) full profile laydown threading inserts. IR/L - ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - with a chipformer. Used for steam, gas and water pipes. | FamilyName | IR/L-NPT |
| Remarks | For Insert Identification System, click on More Info National Pipe Threads ANSI/ASME B1.20.1-1983 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0038
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-NPT
BrandName
Iscar
