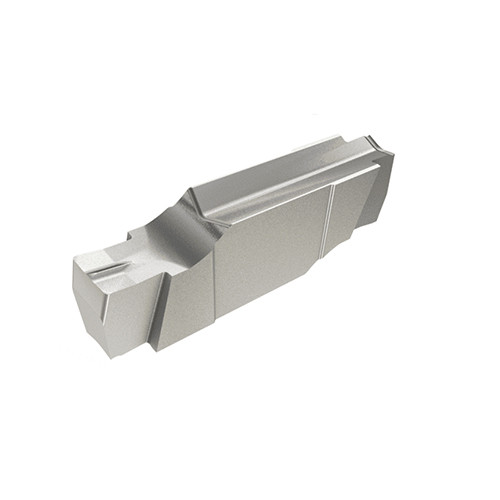

GIPI 1.70-0.00 IC808
Precision inserts for internal grooving and recessing. Double-ended, P-type chipformer, medium feeds, min. bore 20 mm.
Price: Log in For Price

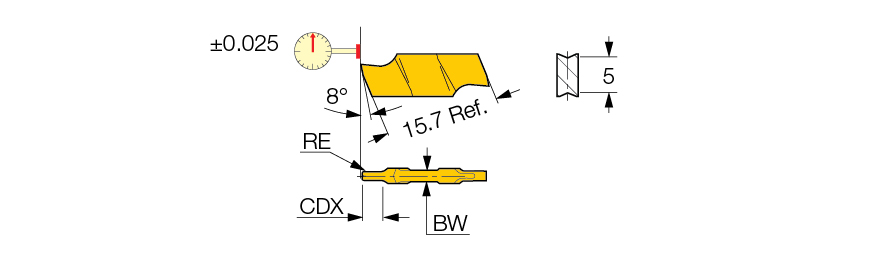

| Cutting Width (CW) | 1.7 mm | Max. Grooving Feed (fg(max)) | 0.06 mm/rev |
| Corner Radius (RE) | 0 mm | Min. Grooving Feed (fg(min)) | 0.03 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.03 mm | Chip Breaker Type | P |
| Overall Length (OAL) | 15.7 mm | Tool Type | Groove-Turn Precision Inserts |
| Insert Length (INSL) | 15.7 mm | Minimum Bore Diameter (DMIN) | 30 mm |
| Cutting Depth Maximum (CDX) | 2.5 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+AlTiN+TiN | Cutting Width Tolerance (+/-) (CWTOL) | 0.02 mm |
| Grade | IC808 | Insert Width (W1) | 2.2 mm |
| Application | | Int. Grooving (side limit) | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Precision inserts for internal grooving and recessing. Double-ended, P-type chipformer, medium feeds, min. bore 20 mm. | FamilyName | GIPI (CW<BW) |
| Remarks | The tool pocket should be modified DMIN for internal application=20 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0072
Name
Parting Off Indexable Inserts
FamilyName
GIPI (CW<BW)
BrandName
Iscar
