SD TRD40-W55-3T-SP17 IC908

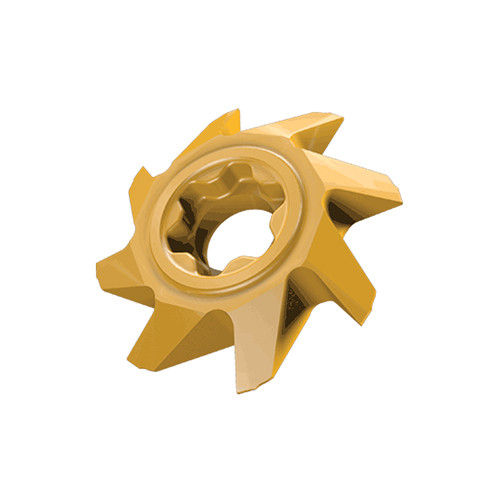

Interchangeable solid carbide heads for 55° partial profile thread milling.
Price: Log in For Price

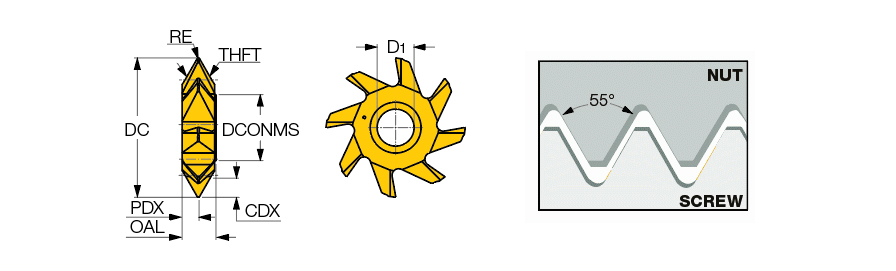

| Thread Standard | THFT | | Functional Length (LF) | 0 mm |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IC908 | Overall Length (OAL) | 9.5 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | VP55 |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| Family Description | Interchangeable solid carbide heads for 55° partial profile thread milling. | COO | Israel |
| Remarks | B.S.84 Internal & External tolerance: Medium class |
Shipping Info
Weight per item
0.0870
