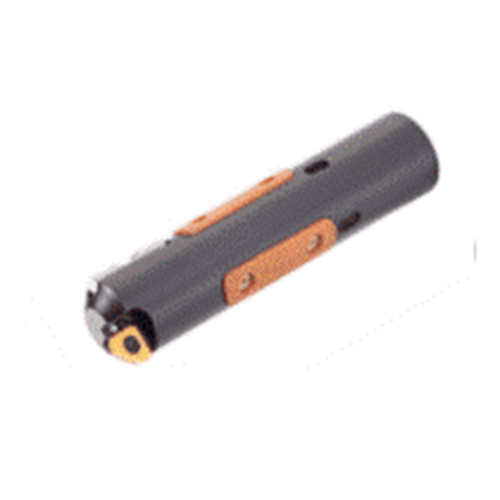

DSC-IA 34.00-36.99
Deep single tube counterbores with a through hole, internal single-start thread Connection and adjustable diameter. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.
Price: Log in For Price

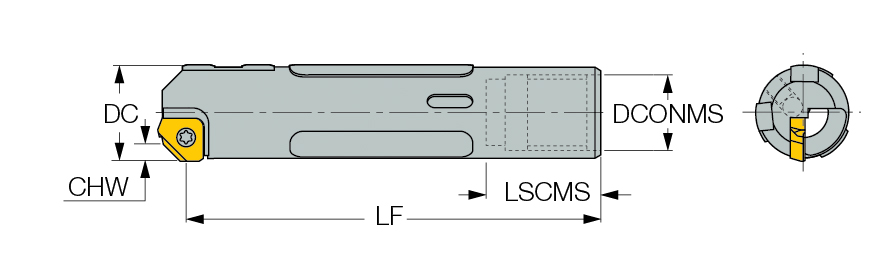

| Application | | Deep Drilling | | Connection Thread Size (Ts) | TS-O14 |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Cutting Diameter Minimum (DCN) | 34 mm |
| Tool Type | Deep Hole / Gun Drill | Cutting Diameter Maximum (DCX) | 36.99 mm |
| Shank Length (LS) | 40 mm | Measurement Type | Metric |
| Overall Length (OAL) | 135 mm | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
Product Features
| Family Description | Deep single tube counterbores with a through hole, internal single-start thread Connection and adjustable diameter. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | Japan |
| Remarks | For quotation form and user guide, click on More Info. |
