EBAI-B3 .5-2.C-4EC IC1508

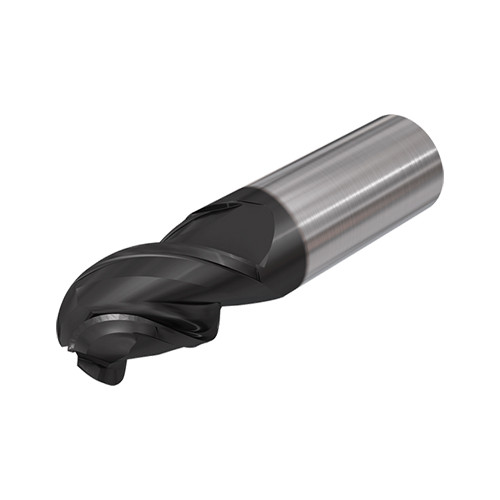

DLC coated 3 flute ball nose mills for machining Aluminum and other non-ferrous materials.
Price: Log in For Price

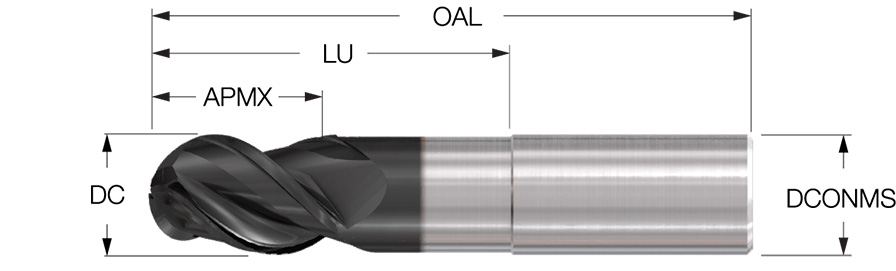

| Cutting Diameter (DC) | 1/2″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | | Profiling | |
| Depth of Cut Maximum (APMX) | 2″ | Corner Radius (RE) | 1/4″ |
| Overall Length (OAL) | 4″ | Grade | IC1508 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | DLC | Body Material | Carbide |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.5″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 2″ | Unit | I |
Product Features
| Family Description | DLC coated 3 flute ball nose mills for machining Aluminum and other non-ferrous materials. | FamilyName | EBAI-B3-EC |
| COO | USA | BrandName | Iscar |
Shipping Info
Name
Ballnose End Mills
FamilyName
EBAI-B3-EC
BrandName
Iscar
