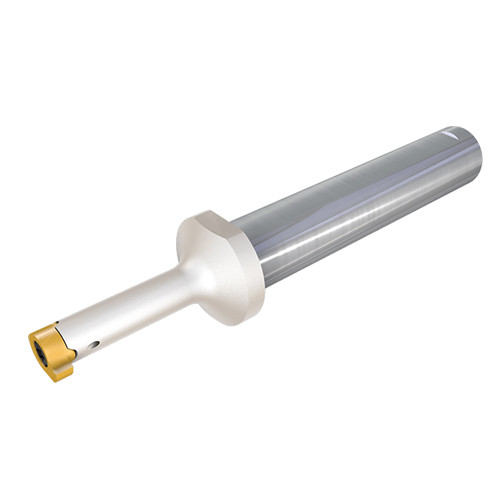

MG 12-11C25
Internal grooving turning and threading bars, Dmin 8 mm. CHAMGROOVE - part of the CHAMELEON multifunction system.
Price: Log in For Price

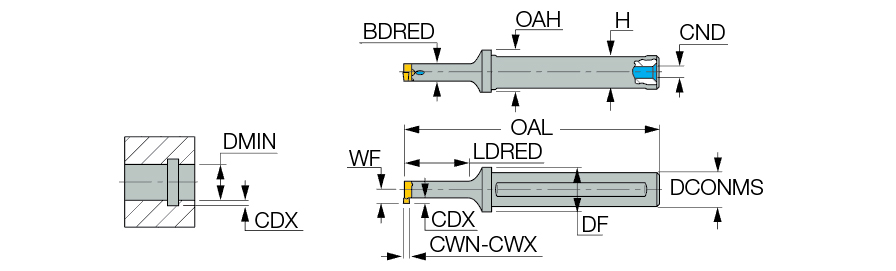

| Cutting Width Minimum (CWN) | 0.5 mm | Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Width Maximum (CWX) | 3 mm | Application | | Int. Back Boring and Profiling | Int. Boring and Profiling | Int. Groove & Turn | Int. Grooving | Threading (Int.) | |
| Cutting Depth Maximum (CDX) | 2.3 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 11 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 6.7 mm | Measurement Type | Metric |
| Overall Length (OAL) | 92.5 mm | Unit | M |
Product Features
| Family Description | Internal grooving turning and threading bars, Dmin 8 mm. CHAMGROOVE - part of the CHAMELEON multifunction system. | FamilyName | MG |
| Remarks | The same tool applies on right and left machining | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0840
Name
Groove/Turn Indexable Holders
FamilyName
MG
BrandName
Iscar
