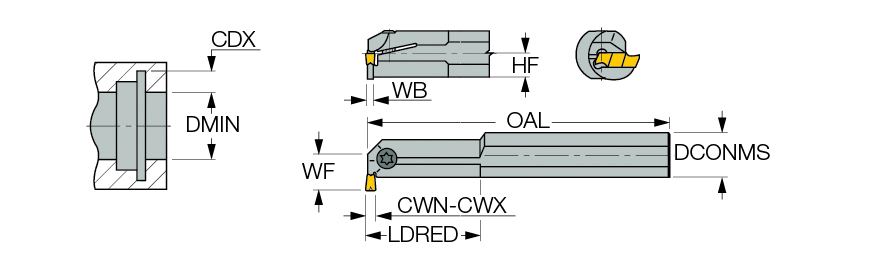

| Cutting Width Minimum (CWN) | 2.5 mm | Connection Diameter Machine Side (DCONMS) | 25 mm |
| Cutting Width Maximum (CWX) | 4 mm | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Cutting Depth Maximum (CDX) | 5 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 25 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 17.5 mm | Measurement Type | Metric |
| Head Length (LH) | 50 mm | Unit | M |
| Overall Length (OAL) | 200 mm |
Product Features

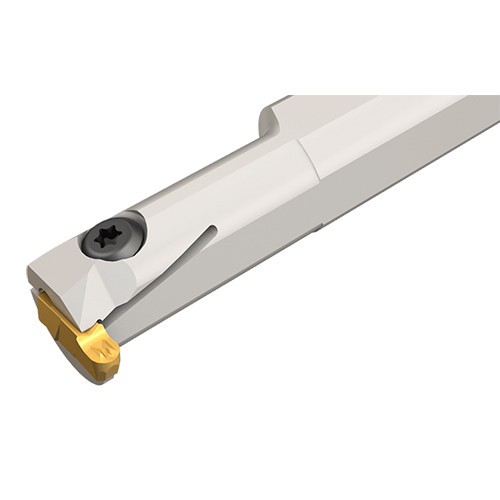

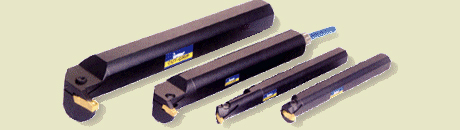

| Family Description | Internal grooving and turning bars. | FamilyName | GHIR/L (W 1.9-6.4) |
| Remarks | When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.7280
Name
Groove/Turn Indexable Holders
FamilyName
GHIR/L (W 1.9-6.4)
BrandName
Iscar
