BT40 SRKIN 18X 90

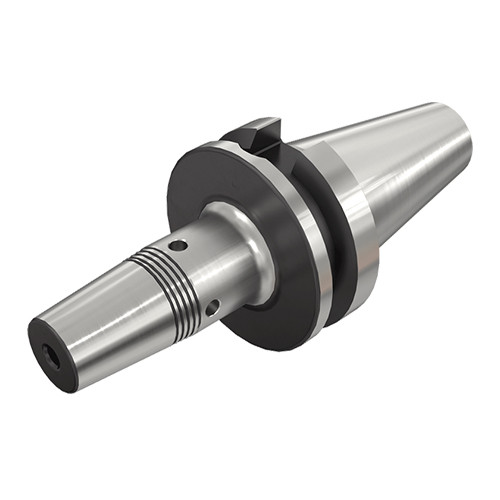

Thermal shrink chucks with BT MAS 403 form AD taper shanks for carbide HSS and steel tools.
Price: Log in For Price

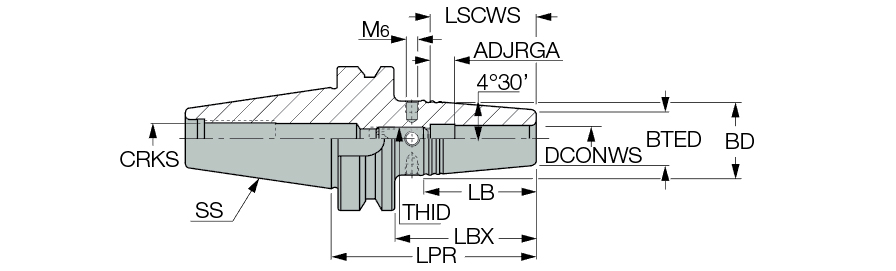

| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 18 mm | Tool Type | BT |
| Shank Size (SS) | 40 | Body Material | Steel |
| Body Length (LB) | 57 mm | Connection Code Machine Side (CCMS) | BT |
| Protruding Length (LPR) | 90 mm | Unit | M |
| Overall Length (OAL) | 155.4 mm |
Product Features
| Family Description | Thermal shrink chucks with BT MAS 403 form AD taper shanks for carbide HSS and steel tools. | FamilyName | BT-SRKIN |
| Remarks | Use only inductive heating device for SRKIN holders For solid carbide, HSS and steel tools. For shank dimensions and shrink units information, click on More Info ISCAR cannot guarantee an unbalance value less than 1 gr x mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.4630
Name
Shrink Fit Holders
FamilyName
BT-SRKIN
BrandName
Iscar
