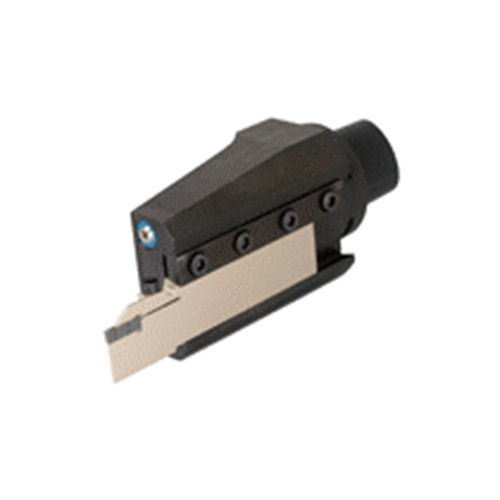

C6 TBK-32R
Blocks with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks for parting and grooving blades.
Price: Log in For Price

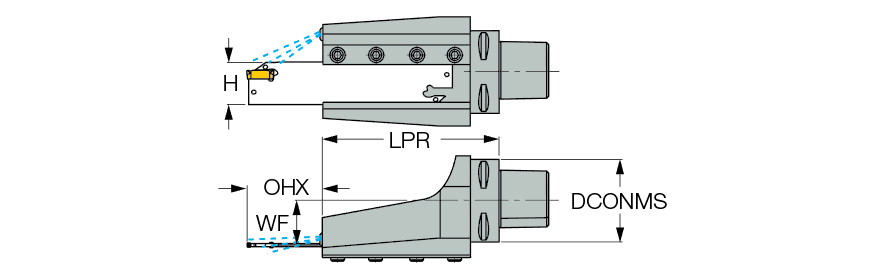

| Protruding Length (LPR) | 138 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Material | Steel |
| Overall Length (OAL) | 176 mm | Measurement Type | Metric |
| Shank Size (SS) | 63 | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Shank Height (H) | 32 mm | Unit | M |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Blocks with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks for parting and grooving blades. | FamilyName | C#-TBK-R/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
3.4020
Name
Holders
FamilyName
C#-TBK-R/L
BrandName
Iscar
