PS BT50 45 M24 MAZAKB

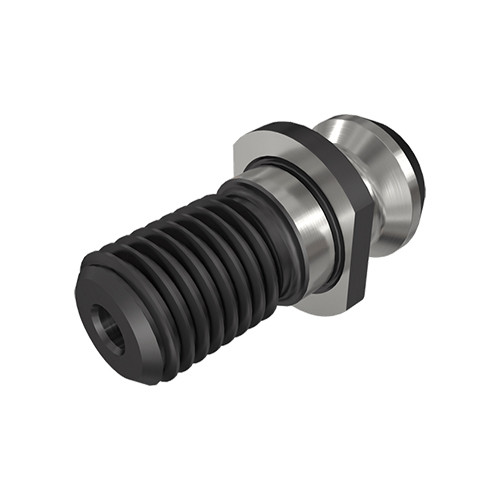

BT pull stud with ANSI Retention knob for MAZAK machines.
Price: Log in For Price
| Shank Size (SS) | 50 | Measurement Type | Metric |
| Body Diameter (BD) | 25 mm | Tool Type | PS MAZAK |
| Connection Retention Knob Thread Size (CRKS) | M24 | Body Half Taper Angle (BHTA) | 45 Degrees |
| Body Length (LB) | 17.58 mm | Body Material | Steel |
| Overall Length (OAL) | 65.2 mm | Unit | M |
| Application | | Collets & Accessories | |
Product Features
| Family Description | BT pull stud with ANSI Retention knob for MAZAK machines. | FamilyName | PS BT-MAZAK (Pull Stud) |

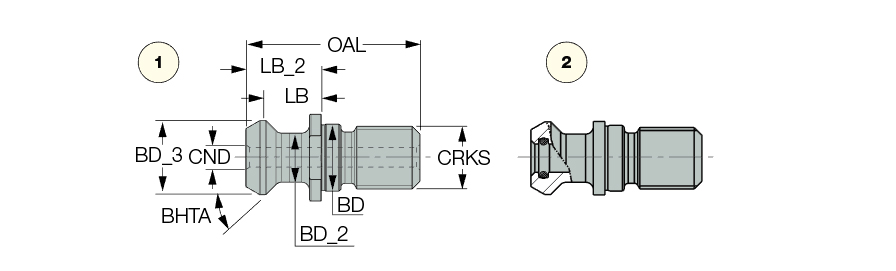

| Remarks | Fig 1: With coolant hole only Fig 2: With coolant hole and internal O-ring | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
0.2220
Name
Pull Studs (Retention Knobs)
FamilyName
PS BT-MAZAK (Pull Stud)
BrandName
Iscar
