| Shank Size (SS) | 50 | Measurement Type | Metric |
| Body Diameter (BD) | 21.01 mm | Tool Type | Accessories and Devices |
| Connection Retention Knob Thread Size (CRKS) | 1-8 | Body Half Taper Angle (BHTA) | 60 Degrees |
| Body Length (LB) | 35 mm | Body Material | Steel |
| Overall Length (OAL) | 85 mm | Unit | M |
| Application | | Collets & Accessories | |
Product Features
| Family Description | CAT pull studs with MAS retention knobs. | FamilyName | PS CAT-MAS (Pull Stud) |

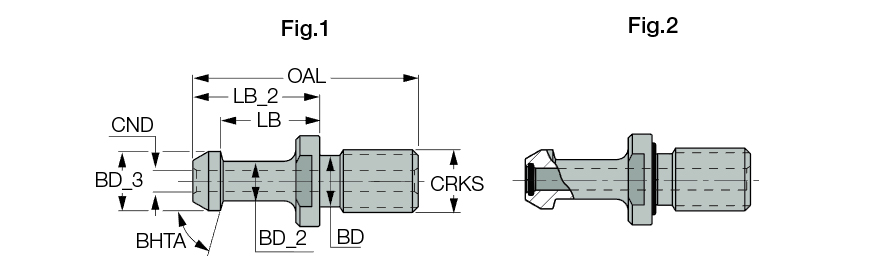

| Remarks | Fig 1: With coolant holes only (in items with a B suffix) Fig 2: With coolant holes, external and internal O-rings | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
0.2840
Name

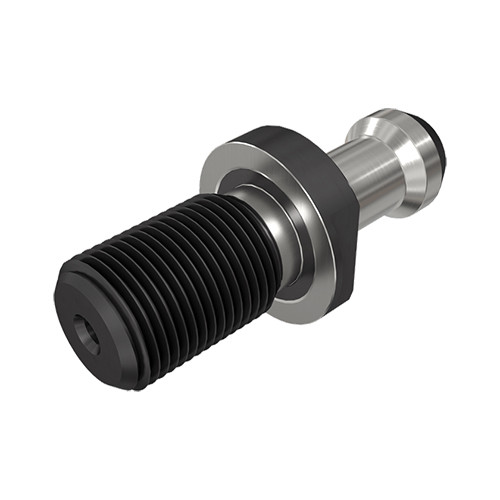

Pull Studs (Retention Knobs)
FamilyName
PS CAT-MAS (Pull Stud)
BrandName
Iscar
