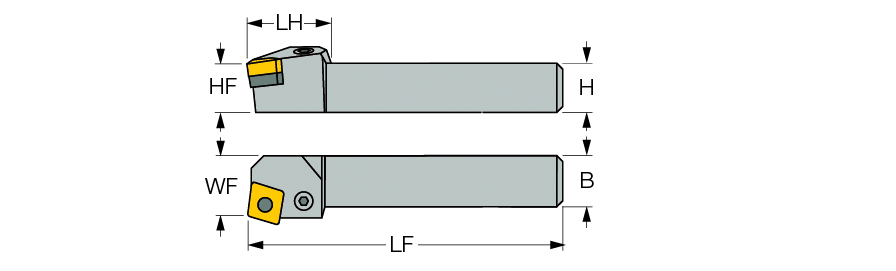

| Shank Height (H) | 32 mm | Application | | Ext. 100° Diamond 75° Approach | |
| Shank Width (B) | 32 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 170 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 37 mm | Body Material | Steel |
| Functional Width (WF) | 27 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 19.05 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Master Insert Identification (MIID) | CNMG 1906.. |
Product Features

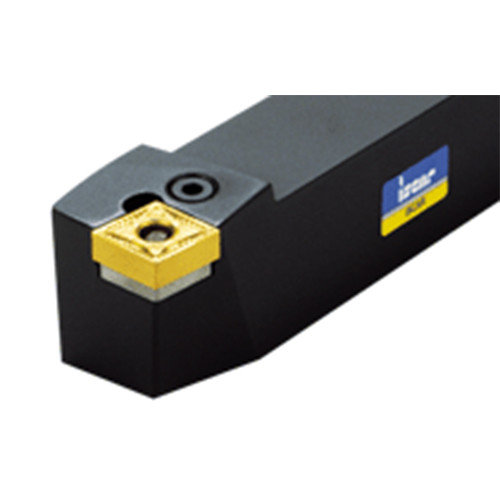

| Family Description | Lever lock tools using the 100° corner of CNMG inserts. | FamilyName | PCBNR/L |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
1.3530
Name
General Indexable Turning Tools
FamilyName
PCBNR/L
BrandName
Iscar
