FDN D063-07-16-XN06

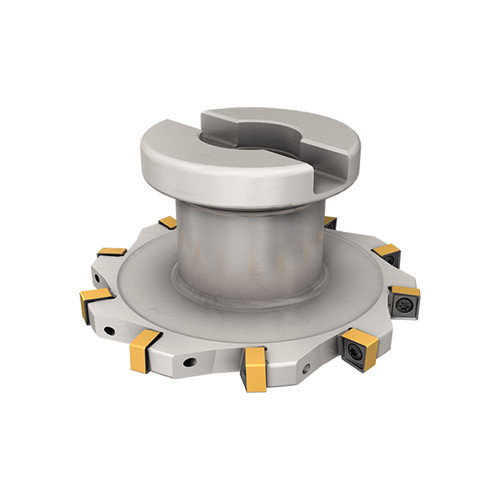

Full slot flange type, slotting cutters carrying XNMU 0603 square inserts with 4 right- and 4 left-hand cutting edges.
Price: Log in For Price

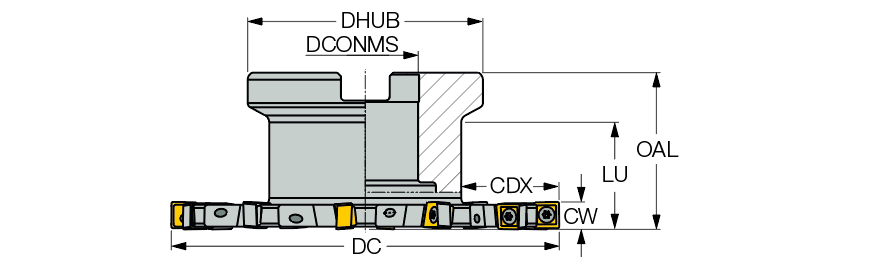

| Cutting Diameter (DC) | 63 mm | Overall Length (OAL) | 40 mm |
| Cutting Item Count (CICT) | 8 | Master Insert Identification (MIID) | XNMU 0603... |
| Peripheral Effective Cutting Edge Count (ZEFP) | 8 | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |
| Depth of Cut Maximum (APMX) | 7 mm | Arbor Style | A |
| Cutting Depth Maximum (CDX) | 17 mm | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 38 mm | Measurement Type | Metric |
| Usable Length (LU) | 28.5 mm | Body Material | Steel |
| Flute Count (NOF) | 7 | Unit | M |
Product Features
| Family Description | Full slot flange type, slotting cutters carrying XNMU 0603 square inserts with 4 right- and 4 left-hand cutting edges. | FamilyName | FDN-XN06 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.3720
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
FDN-XN06
BrandName
Iscar
