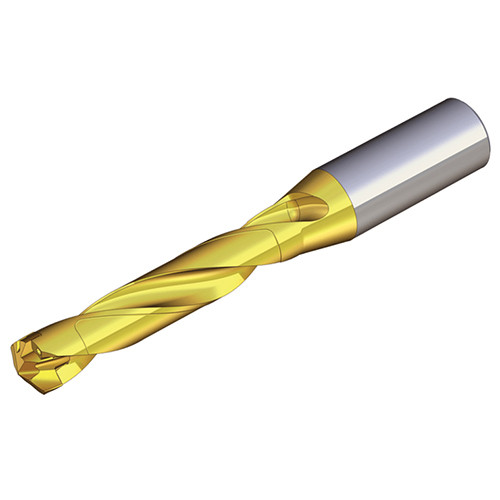

TCD 240-249-32S0-5D
DRILLRUSH Head changeable drills with cylindrical shank (5xD) and coolant holes
Price: Log in For Price

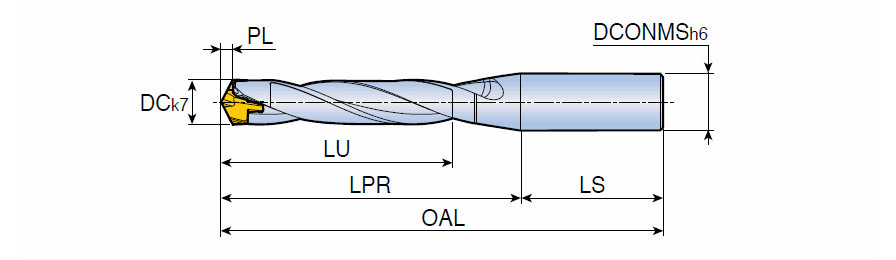

| Usable Length (LU) | 124 mm | Functional Length (LF) | 154.28 mm |
| Application | | Drilling | | Shank Length (LS) | 60 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Cutting Diameter Minimum (DCN) | 24 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 24.9 mm | Unit | M |
Product Features
| Family Description | DRILLRUSH Head changeable drills with cylindrical shank (5xD) and coolant holes | COO | S.KOREA |
Shipping Info
Weight per item
0.7270
