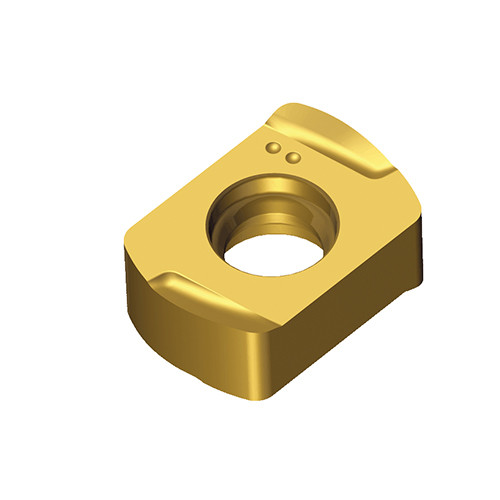

BLMP 1105R-ML TT9080
Unique double-sided inserts of 4 sharp cutting edges for High Feed milling of exotic materials in maximum depth of cut ap 2.0 mm
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 1.2 mm/tooth |
| Application | | Facing | Helical Interpolation | High Feed Milling | Inserts | Profiling | Rampdown | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1.3 mm | Minimum Feed per Tooth (fz(min)) | 0.3 mm/tooth |

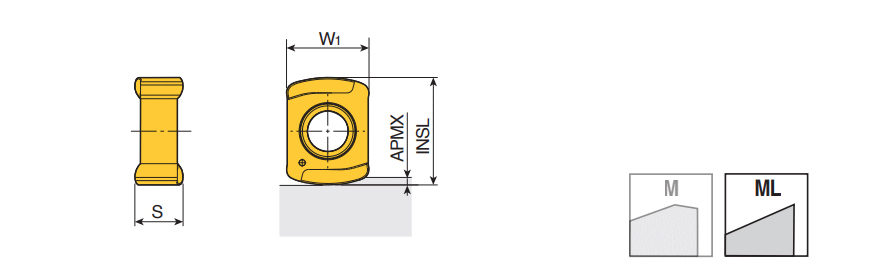

| Depth of Cut Maximum (APMX) | 2 mm | Measurement Type | Metric |
| Insert Thickness (S) | 6.54 mm | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
| Grade | TT9080 |
Product Features
| Family Description | Unique double-sided inserts of 4 sharp cutting edges for High Feed milling of exotic materials in maximum depth of cut ap 2.0 mm | FamilyName | BLMP 11-ML |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0098
Name
Milling Indexable Inserts
FamilyName
BLMP 11-ML
BrandName
Taegutec
