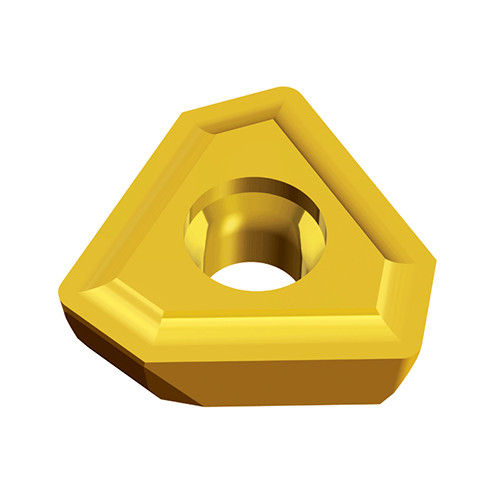

TPMX 140308R-B TT9130
Deep drilling inserts for TBTA 3/5/7/9 cartridge type heads & TBTA-R Counter boring heads with normal tolerance covering dia 40-129.99 mm
Price: Log in For Price

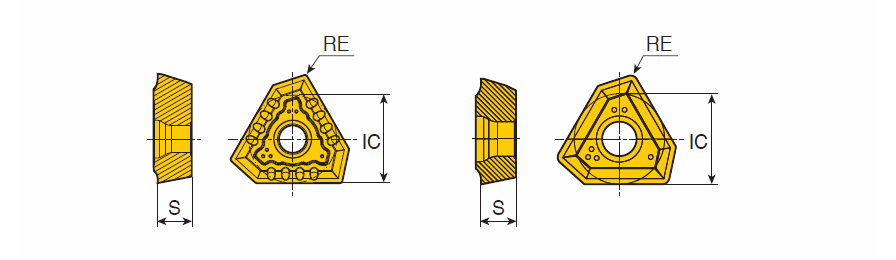

| Insert Thickness (S) | 3.5 mm | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 8.45 mm | Measurement Type | Metric |
| Corner Radius (RE) | 0.8 mm | Body Material | Carbide |
| Grade | TT9130 | Unit | M |
| Application | | DeepDrill | Hole Making Inserts | |
Product Features
| Family Description | Deep drilling inserts for TBTA 3/5/7/9 cartridge type heads & TBTA-R Counter boring heads with normal tolerance covering dia 40-129.99 mm | COO | JAPAN |
Shipping Info
Weight per item
0.0000
