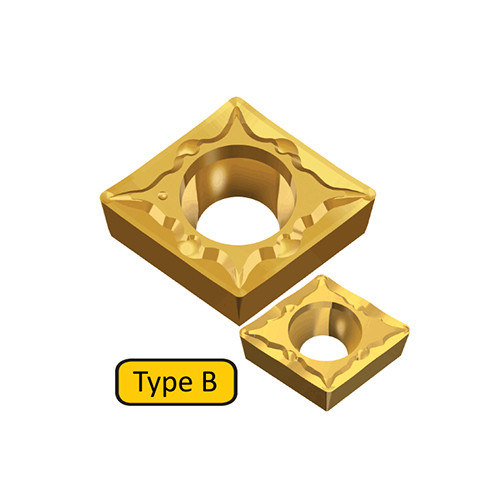

CCMT 09T304 FG TT8115B

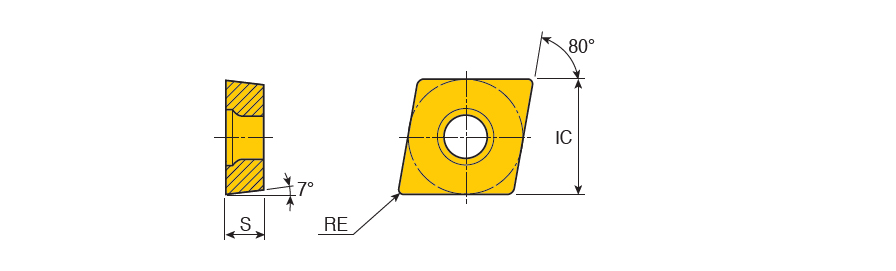

Positive 80° Rhombic inserts for finish to medium light applications of steels & stainless steels with 7° clearance angle & excellent chip control
Price: Log in For Price
| Applicable Material | | Steel | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | | Ext 90° App 80° Diamond | Ext 95° App 80°Diamond | Ext 95° App Sleeve 80° Diamond | Inserts | Int 95° App 80° Diamond | Tools for Swiss Machines | | Min D.O.C. | 0.4 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 9.7 mm | Min. Turning Feed (ft(min)) | 0.07 mm/rev |
| Insert Thickness (S) | 3.97 mm | Max. Turning Feed (ft(max)) | 0.1 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
| Grade | TT8115B |
Product Features
| Family Description | Positive 80° Rhombic inserts for finish to medium light applications of steels & stainless steels with 7° clearance angle & excellent chip control | FamilyName | CCMT-FG |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0059
Name
Turning Indexable Inserts
FamilyName
CCMT-FG
BrandName
Taegutec
