DCGT 11T304M SH-F TT4430

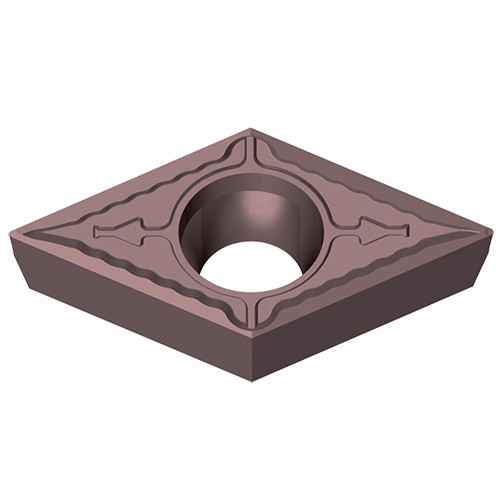

Positive ground 55° rhombic inserts with sharp cutting edge (small honed edge) for high depth machining of small parts on swiss type automatic lathes
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT4430 |
| Application | | Ext 62.5° App 55° Diamond | Ext 93° App 55°Diamond | Ext 93° App Shift 55° Diamond | Ext 93° App Sleeve 55° Diamond | Inserts | Int 100° App 70° Diamond | Int 107.5° App 55° Diamond | Int 93° App 55° Diamond | Int 93° App 70° Diamond | Int 93° App Back 55° Diamond | Tools for Swiss Machines | Y Axis holders | | Min D.O.C. | 0.7 mm |

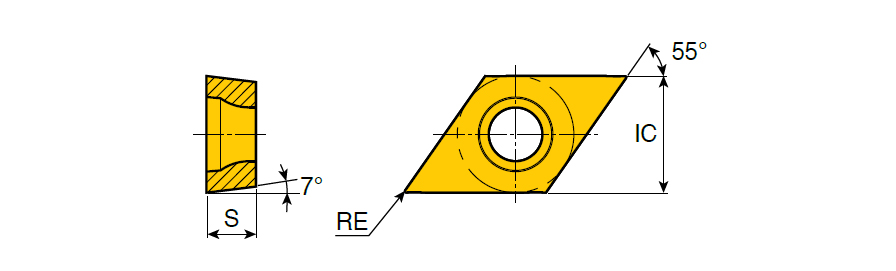

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 3.5 mm |
| Cutting Edge Length (L) | 11.6 mm | Min. Turning Feed (ft(min)) | 0.07 mm/rev |
| Insert Thickness (S) | 3.97 mm | Max. Turning Feed (ft(max)) | 0.17 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Multi AlTiCrN | Unit | M |
Product Features
| Family Description | Positive ground 55° rhombic inserts with sharp cutting edge (small honed edge) for high depth machining of small parts on swiss type automatic lathes | FamilyName | DCGT-SH-F(E) |
| Remarks | M: Corner radius minus tolerance (ex : 02M is 0.18) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0057
Name
Turning Indexable Inserts
FamilyName
DCGT-SH-F(E)
BrandName
Taegutec
