SCGT 09T308 FL K10

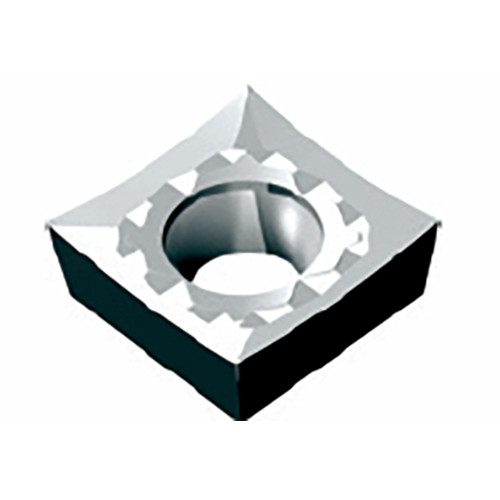

Positive periphery ground & top polished Square inserts with very high positive rake & sharp cutting edges for aluminum machining
Price: Log in For Price
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | K10 |
| Application | | Ext 45° App 90° Square | Ext 45°App Face&Turn 90°Square | Inserts | Int 75° App 90° Square | | Min D.O.C. | 0.5 mm |

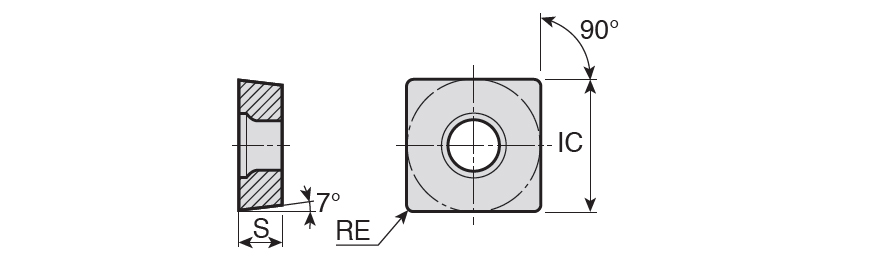

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 3 mm |
| Cutting Edge Length (L) | 9.52 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Thickness (S) | 3.97 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
Product Features
| Family Description | Positive periphery ground & top polished Square inserts with very high positive rake & sharp cutting edges for aluminum machining | FamilyName | SCGT-FL |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0066
Name
Turning Indexable Inserts
FamilyName
SCGT-FL
BrandName
Taegutec
