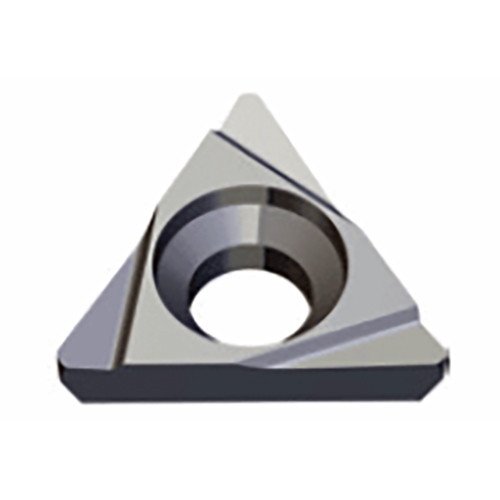

TPGX 110304 L K10

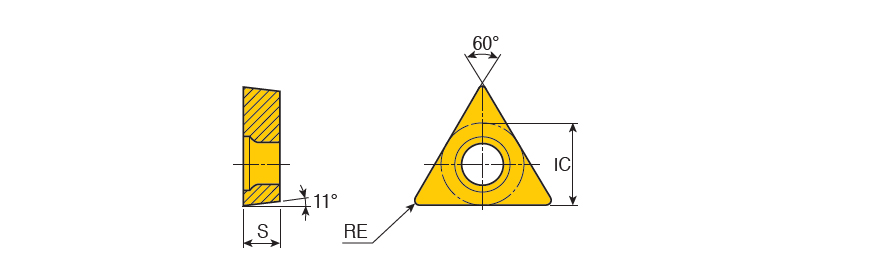

Positive 60° ground Triangular inserts for finishing with ground chip former with 11° clearance angle
Price: Log in For Price
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | K10 |
| Application | | Ext 91° App 60° Triangle | Inserts | Int 91° App 60° Triangle | | Min D.O.C. | 0.6 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 11 mm | Min. Turning Feed (ft(min)) | 0.08 mm/rev |
| Insert Thickness (S) | 3.18 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
Product Features
| Family Description | Positive 60° ground Triangular inserts for finishing with ground chip former with 11° clearance angle | FamilyName | TPGX R/L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0027
Name
Turning Indexable Inserts
FamilyName
TPGX R/L
BrandName
Taegutec
