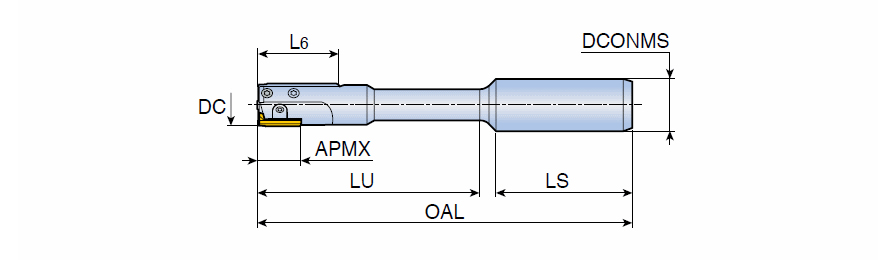

| Connection Diameter Machine Side (DCONMS) | 25 mm | Shank Length (LS) | 56 mm |
| Application | | Through Hole | | Body Material | Steel |
| Insert Seat Size Code (SSC) | 4.00 mm | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 22.5 mm | Unit | M |
| Overall Length (OAL) | 221 mm |
Product Features

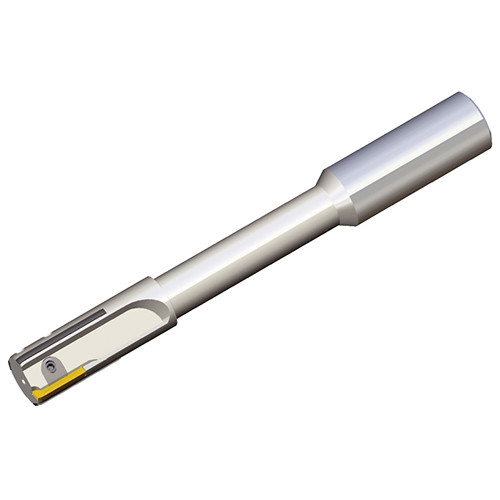

| Family Description | Single-edged indexable reamers for through holes | COO | ITALY |
Shipping Info
Weight per item
0.6430
