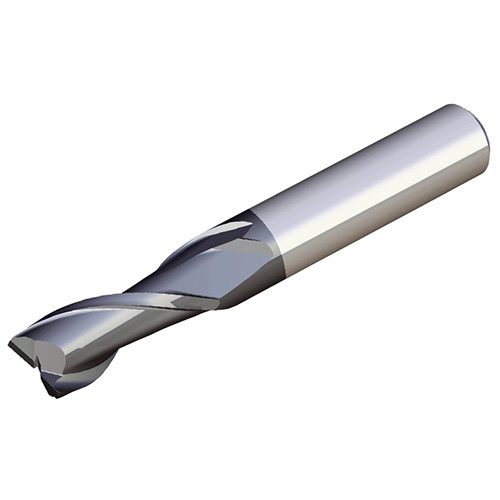

TSE 2020M-4 TT5515
Solid carbide end mills with flat type & medium & 2 flute for general purpose of pre-hardened steels, tool steels, alloy steels and carbon steels
Price: Log in For Price

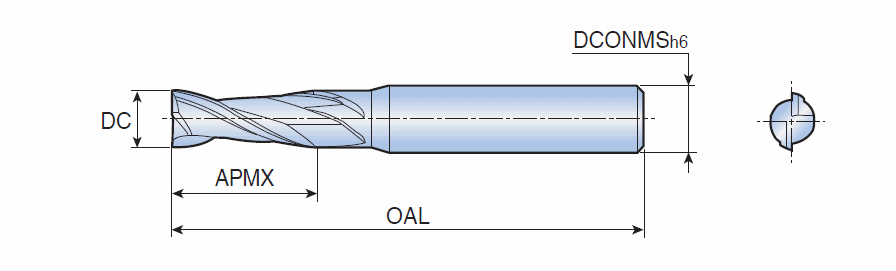

| Cutting Diameter (DC) | 2 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 4 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 40 mm | Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | |
| Cutting Edge Material | Carbide | Grade | TT5515 |
| Coating | AlTiCrN | Body Material | Carbide |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Unit | M |
Product Features
| Family Description | Solid carbide end mills with flat type & medium & 2 flute for general purpose of pre-hardened steels, tool steels, alloy steels and carbon steels | FamilyName | TSE 2...M |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0090
Name
Square & Corner Radius End Mills
FamilyName
TSE 2...M
BrandName
Taegutec
