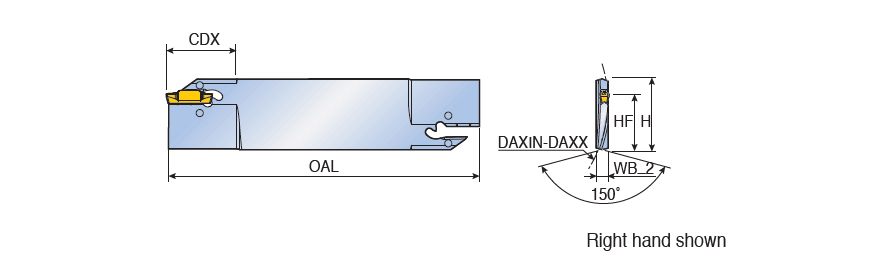

| Shank Width (B) | 5.2 mm | Application | | Face Grooving | |
| Shank Height (H) | 32 mm | Master Insert Identification (MIID) | TDXU 3E-0.3 |
| Cutting Depth Maximum (CDX) | 25 mm | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 120 mm | Measurement Type | Metric |
| Axial Groove Outside Diameter Minimum (DAXN) | 74 mm | Unit | M |
| Overall Length (OAL) | 150 mm |
Product Features
| Family Description | Double ended blades for deep face grooving | FamilyName | TGBFR/L (Double-ended) |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
0.1650
Name

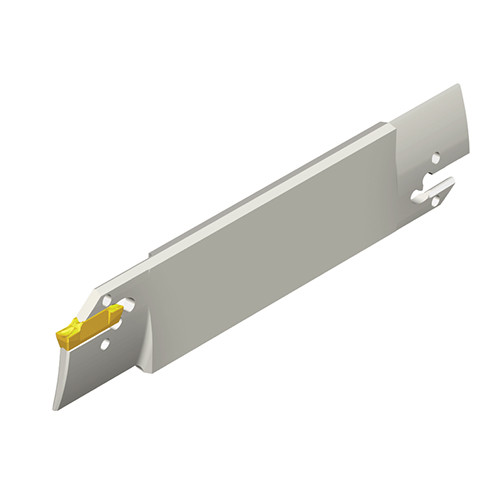

Face Groove/Turn Indexable Holders
FamilyName
TGBFR/L (Double-ended)
BrandName
Taegutec
